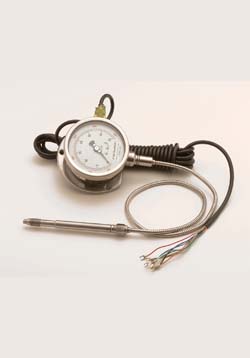

The model CTG Melt Pressure/Temperature Transducer with visual indication and integral thermocouple is designed for processors who would benefit from localized pressure indication at the extruder barrel. These transducers also offer the advantage of providing the industry standard 3.33 mv/Volt output, and offers pin-to-pin compatibility with all competitors models utilizing the Bendix style 6 pin bayonet connector.
The CTG style follows the classic melt pressure/temperature transducer design. It comprises a 6” rigid stem, along with 30” of flexible capillary, integral Type J thermocouple and a 1/2-20 UNF thread for mounting in standard transducer mounting holes.
