CTEC Melt Pressure Transducer
For Space Restricted Areas







  Products
  General Information
CTEC Melt Pressure Transducer For Space Restricted Areas


Product Description:

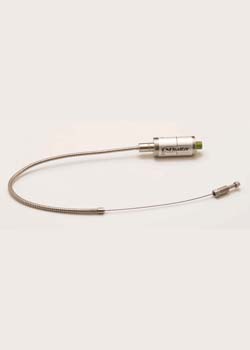

The model CTEC Series Melt Pressure Transducer is ideal for general purpose melt pressure applications in space restricted areas. The unit features the industry standard 3.33 mV/Volt output and offers pin-to-pin compatibility with all competitors models utilizing the Bendix style 6 pin bayonet connector.

The model CTEC Series Melt Pressure Transducer comes standard with a 1.5" jam nut, 10" of exposed capillary, 18" of flexible capillary and a
1/2-20 UNF thread for mounting in standard transducer mounting holes.



Features:

  • 3.33 mV/Volt full scale output

  • Accuracy +/- 0.5%

  • Internal 80% shunt calibration

  • 1/8" minimum bend radius


Common Options:

  • DLX grade 0.25% accuracy

  • 36" flexible capillary

  • 2.5 mV/V output

  • 8 pin connector
