CTNM Nozzle Melt Pressure Transducer


Product Description:

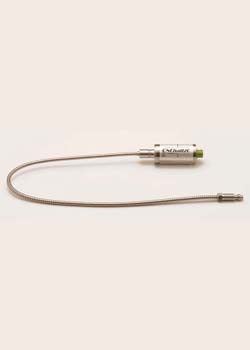

The model CTNM Series Nozzle Melt Pressure Transducer is ideal for general purpose melt pressure applications. The unit features the industry standard 3.33 mV/Volt output and offers pin-to-pin compatibility with all competitors models utilizing the Bendix style 6 pin bayonet connector.

The model CTNM Series Nozzle Melt Pressure Transducer comes standard with a 1.5" jam nut, 28" of flexible capillary and a 1/2-20 UNF thread for mounting in standard transducer mounting holes.



Features:

  • 3.33 mV/Volt full scale output

  • Accuracy +/- 0.5%

  • Internal 80% shunt calibration

  • All welded all stainless steel construction


Common Options:

  • DLX grade 0.25% accuracy

  • 3" jam nut

  • 2.5 mV/V output

  • 8 pin connector
