SERIES SD

Controllers Provide Value and

Accurate, Cost-Effective

Temperature Control

Product Spec Sheet In Acrobat Format

Product User Manual

The Series SD family of PID Temperature Controls utilizes today’s technology to provide the features and accuracy you’ve come to expect from a Watlow Controller at a price and a size that fits your needs.

The price, performance and features offered by the Series SD controllers make them ideally suited for a wide range of applications in temperature and process control.

These Single channel Controls include a universal sensor input with up to 3 outputs that can be programmed for heat cool temperature control, as well as operate as process or deviation alarms.

Advanced features include EIA 485 Modbus serial communications, InfoSenseTM technology, Infrared Remote communications operation, a patented User Definable Menu System which allows the user to select which parameters will appear in the Operations Menu, and a “Save and Restore”  feature that allows the user to save and restore their settings – not just the factory settings!!

WatviewTM, Watlow’s WindowsR based HMI (Human Machine Interface) software, supports the Series SD controllers.  The software can be used to setup, monitor, and edit the values of controller parameters, to monitor and manage alarms, and to log and graph process data.

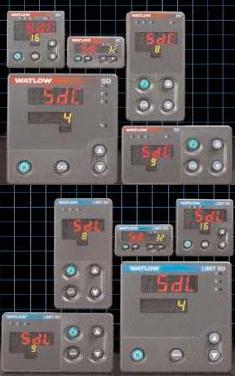

Available in 1/32, 1/16, 1/8 and ¼ Din Panel mount sizes, the Series SD products include UL, c-UL, CSA, CE certification and include a NEMA 4X (IP65) seal.

The Series SD is manufactured by ISO 9001 registered Watlow Controls and is backed by a 3-year Warranty
