Solid State Power Control

Product Spec Sheet

Produc Manual

Description

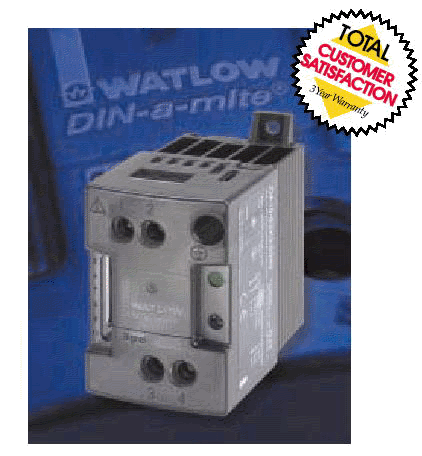

 Watlow's DIN-A-MITEŽ Style A power controller provides a Iow-cost, highly compact and versatile solid state option for controlling electric heat. You also get all the quality you expect from a Watlow designed and manufactured product. DIN rail and back panel mounting is standard on every controller. There is no need to worry about mercury, the DIN-A-MITE controller is mercury free.



Capabilities include single-phase zero cross switching up to 25 amps at 600V~(ac) (see rating curve). A unique integrated design removes the guesswork associated with selecting a proper heat sink and adequate terminations for the application.



Variable time base, 4-20mA process control or V~(ac/dc) input contactor versions are available. All configurations are model number dependent and factory selectable.

Features

•  DIN Rail mount or standard panel mount
• Compact Size
• Touch Safe Terminals
• No Mercury
• Faster switching with solid state
• UL 508 listed and C-UL, VDE 0160, and CE with filter
