Single- and Three-Phase Power in a Compact and Safe Package

Product Spec Sheet

Product Manual

Description

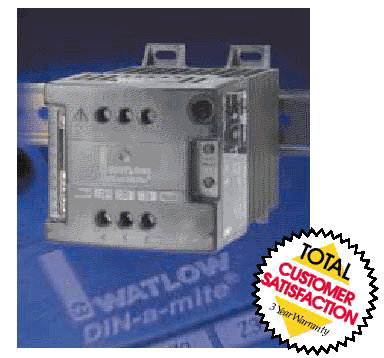

 Watlow's DIN-A-MITEŽ Style B power controller provides a Iow-cost, highly compact and versatile solid state option for controlling electric heat. You also get all the quality you expect from a Watlow designed and manufactured product. DIN rail and back panel mounting are standard on every control. There is no need to worry about mercury; the DIN-A-MITE controller is mercury free.

Capabilities include single-phase and three-phase zero cross switching up to 40 and 22 amps, respectively, at 600V~(ac) (see rating curve). A unique, integrated design removes the guesswork associated with selecting a proper heatsink and adequate terminations for the application.

Variable time base, 4-20mA process control or V~(ac/dc) input contactor versions are available. A shorted SCR alarm option is also available. All configurations are model number dependent and factory selectable.

The DIN-A-MITE power controller is made in the USA.

Features

•  DIN rail or standard panel mount
• Compact size
• Touch-safe terminals
• Single- and three-phase power
• No mercury
• Faster switching with solid state
• ULR 508 listed and C-UL,VDE 0160, and CE with filter
• Back-to-back SCR design
• Shorted output detector(optional)


Features

•  Versatile, quick and low-cost installation
• Reduced panel space; less cost
• Increased safety for installer/user
• Permits use in a variety of applications
• Environmentally safe product
• Saves energy and extends heater life
• Applications requiring agency approval
• Rugged design
• Notifies you in case of a shorted SCR


 The DIN-A-MITE power controller is made in the USA UL is a registered trademark of the Underwriter's Laboratories Inc.
