Single- and Three-Phase

Power

in a

Compact and Safe Package

Product Spec Sheet

Product Manual

Description

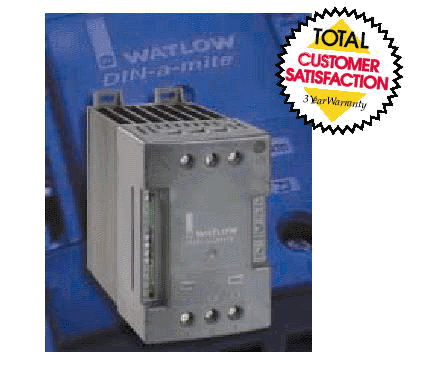

The Watlow DIN-A-MITEŽ power controller provides you with a Iow cost, compact and versatile solid state option for controlling electric heat. You also get all the quality you expect from a Watlow designed and manufactured product. DIN rail and standard panel mounting plus a cabinet thru-wall mount version is available.

Basic features include single-phase, three-phase/two leg, and three-phase/three leg, 24-600V~(ac) operation. Current switching capabilities range from 30 to 80A depending on the model ordered.

Variable time base, linear voltage and current process control or V~(ac/dc) input contactor versions are available. Also single phase, phase angle firing and current limiting are available.

All configurations are model number dependent and factory selectable.

The DIN-A-MITE power controller is made in the USA.

Features

• DIN rail and standard panel mount or thru-wall mounting
• Compact size
• Touch-safe terminals
• One- and three-phase power
• Shorted output detector (optional)
• No mercury
• Faster switching with solid state
• ULR 508 listed and C-UL VDE 0160 and CE with filter
• System solution component
• Back-to-back SCR design


Benefits

•  Versatile, quick and low cost installation
• Reduced panel space, less cost
• Increased safety for installer/user
• Can be used in a variety of applications
• Notifies you in case of a shorted output
• Environmentally safe
• Saves energy, extends heater life
• For applications requiring agency approval


The DIN-A-MITE power control is made in the USA.
