Din A Mite D

Switches up to

100 A in a

Small Package

  Descriptionr

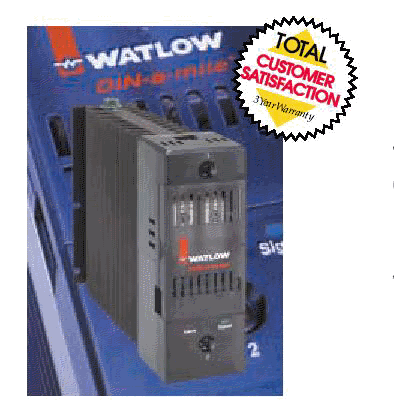

The Watlow DIN-A-MITEŽ Style D SCR power controller provides you with an inexpensive, versatile product for controlling heat in an efficient package. You also get all the quality you expect from a Watlow designed and manufactured product. The standard back panel mounting footprint is equal to that of an industry standard mercury displacement relay. There is no need to worry about mercury; the DIN-A-MITE controller is mercury free.



The DIN-A-MITE Style D is capable of zero cross switching up to 100 amps single phase, at 600V~(ac) at 30°C (86°F), depending on the model selected. Gang together the input of two or three controllers and you can control three phase. It is totally touch-safe and includes standard back panel mounting, on-board semiconductor fuses (accessible from the front) and a current transformer option for external load current monitoring. An optional "shorted SCR detector" feature is available on some models. ULŽ 508 and C-ULŽ and CE approved. These agency approvals are ideal for those panel builders that require agency approvals on their panels and cabinets.



Variable time base, 4-20mA process control, or V (ac/dc) input contactor options are available. All configurations are model number dependent and factory selectable.



The DIN-A-MITE Style D power controller is made in the USA.

Features

•  Standard panel mount
• Compact size
• Touch-safe terminals
• No mercury
• Faster switching with solid state
• ULR 508 listed and UL VDE 0160, and CE with filter
• Back-to-back SCR design
• On-board semiconductor fusing

Benefits

•  Provides same mount as industry standard 1OOA MDR
• Reduced panel space less cost
• Increased safety for installer/user
• Environmentally safe product
• Saves energy and extends heater life
• Applications requiring agency approval
• Rugged design
• Provides quick access with no extra mounting necessary


The DIN-A-MITE power controller is made in the USA.
