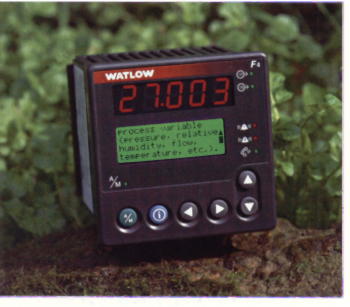

The Series F4 1/4 DIN temperature process controllers
offer the performance and features to meet a wide
range of industrial processing needs. The F4 process
controllers are ideally suited for semiconductor
manufacturing equipment, plastic processing and
packaging equipment, and industrial process control
applications.
This competitively priced controller features a four line,
high definition LCD interface display along with an
information key that makes set up and control
operation significantly easier with less chance for error.
A 16 bit microprocessor supports all the accuracy and
performance advantages you have come to expect
from a Watlow controller.
The enhanced software option enables the Series F4 to
support complex control applications such as cascade
ratio and differential control. The four digital inputs can be used to remotely modify
the operation of the controller or enable the display of
pre-defined operator messages.
Serial communication and dual alarm relays are
included in the base unit. The Series F4 is packaged
with a NEMA 4X front face to withstand harsh
environments and a four inch deep case with
removable connectors for wiring convenience.
The Series F4 controller is manufactured by
ISO 9001 registered Watlow Controls and is backed
with a three-year warranty.
Four day availability on all standard models in
quantities of 20 or less.
|
Watlow
Series F4 Process Control
\
Description
