MELT PRESSURE TRANSDUCERS to replace units from Dynisco, ISI, Gefran, GP50, and Gentran.

Standard features such as Inconel Diaphragms, and optional coatings including our
Diamond Particulate Tip make THESE melt pressure transducers the superior choice. Transducers have 3 YEAR WARRANTY covering manufacturing defects.

Most products are shipped the same day from stock.



Melt Pressure Transducers Melt Pressure Transmitters Melt Pressure Digital Gages Melt Pressure Indicators Rupture Discs Melt Pressure Cables and Accessories


Melt Pressure Transducers PRICE LIST (pdf)

Melt Pressure Transducers



  • STANDARD FEATURES
  • Interchangeable with Competitor's models
  • Fluid filled system  (or new pushrod design)
  • 6pin Bayonet Connector
  • 6"Stem with/without 18"Flex Hose
  • 0.5% combined error
  • 80% Output Calibration
  • 750oF (400oC) Rating
  • Ranges from 0-500 to 0-20,000psi
  • Standard Diaphragm INCONEL





         Mini Melt Pressure Transducers


 Melt Pressure Transducers

Melt Pressure Transducers



MP - STANDARD TRANSDUCERS (pdf)
* Mercury Filled for long term stability
* Standard 3.33mV/V (opt 2.5mV/V)
* Optional Replaceable T/C J/K


MM - OEM TRANSDUCERS (pdf)   NEW
* Mercury Filled for long term stability
* Standard 3.33mV/V
* Optional Replaceable T/C J/K


MF - MERCURY FREE (pdf)
* Mercury-Free Filled System
* 3.33mV/V (opt 2.5mV/V)
* Optional Replaceable T/C J/K

* 660oF (350oC) Rating

MN - NARROW SPACE (pdf)
* Mercury Filled or optional Mercury-Free
* 3.33mV/V
(opt 2.5mV/V)


MP1M - COMPACT TRANSDUCERS (pdf)   NEW
* Mercury Filled for long term stability
* Standard 3.33mV/V
* Space Saver design




  • STANDARD FEATURES
  • Interchangeable with Competitor's models
  • Fluid filled system    (or new pushrod design)
  • 6pin Bayonet Connector
  • 6"Stem with/without 18"Flex Hose
  • 0.5% combined error
  • 80% Output Calibration
  • 750oF (400oC) Rating
  • Ranges from 0-500 to 0-30,000psi
  • Standard Diaphragm INCONEL

Melt Pressure Transducers
Melt Pressure Transmitters

MT - STANDARD TRANSMITTERS (pdf)
* Mercury Filled for long term stability
* 4-20mA output (opt 0-5,1-5,0-10VDC)
* Optional Replaceable T/C J/K


MM - OEM TRANSDUCERS (pdf)   NEW
* Mercury Filled for long term stability
* 4-20mA or 0-10VDC output
* Optional Replaceable T/C J/K

MF - MERCURY FREE (pdf)
* Mercury-Free Filled System
* 4-20mA output (opt 0-5,1-5,0-10VDC)
* Optional Replaceable T/C J/K

MN - NARROW SPACE (pdf)
* Mercury Filled or optional Mercury-Free
*
4-20mA output (opt 0-5,1-5,0-10VDC)

Melt Pressure Digital Gages
PRICE LIST (pdf)


Melt Pressure Digital Gages

Melt Pressure Digital Gages

Melt Pressure Digital Gages

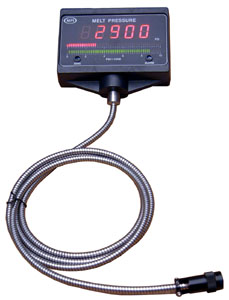

Digital Melt Gage

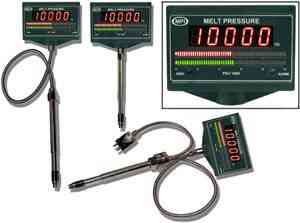

MG - MELT PRESSURE GAUGES (pdf)
* Large 5-DIGIT DIGITAL Display (0.8")
* LED Bar Graphs (Process & Set Value)
*
PV Retransmission (4-20mA)
* Repairable sensor
* 90-260VAC Power
* 6"Stem + 30"Flex Hose (MG200)
* 1% combined error
* 750oF (400oC) Rating
* Ranges from 0-500 to 0-20,000psi
* Rotateable Display (270deg)
* Standard Thread (1/2-20UNF)




Mechanical Melt Pressure Gauge

MPG - MELT PRESSURE GAUGES (pdf)
Local Readings with NO POWER
Large 4.4"Dial
750oF (400oC) Rating
6"Stem + 30"Flex Hose (MPG200)
3% Accuracy
Ranges - 5000 or 10,000psi
Rotateable Display (270deg)
Standard Thread (1/2-20UNF)
Temp Sensors J (MPGJ)


Melt Pressure Indicators

PRICE LIST (pdf)

Melt Pressure Indicator$400


Melt Pressure Indicator$450

Melt Pressure Indicator$500

Melt Pressure Indicator$400



Melt Pressure Control$600



 Melt Pressure Indicators
MP9410 MELT PRESSURE INDICATOR (pdf)
* 350ohm Strain Gauge Input
* Scaleable Range
* 2 Configurable Alarms HIGH/LOW/OFF
* AUTO/MANUAL Calibration
* Manual ZERO
* Lockout
* Process Value - RETRANS

manual (pdf)



MP9610 MELT PRESSURE INDICATOR (pdf)
* 350ohm Strain Gauge Input
* Scaleable Range
* 2 Configurable Alarms HIGH/LOW/OFF
* AUTO/MANUAL Calibration
* Manual ZERO
* Lockout
* Process Value - RETRANS
manual (pdf)




MPT9610 DUAL PRESSURE & TEMP (pdf)

Same as *MP9410,MP9610 plus:
*T/C J Temp input
*3 Alarms
manual (pdf)







MG-IND DIGITAL PRESSURE METER (pdf)

* Can Attach to any Strain Gauge Transducer
* Large 5-DIGIT DIGITAL Display (0.8")
* LED Bar Graphs (Process & Set Value)
* PV Retransmission (4-20mA)
* Manual ZERO













MPC9610 - MELT PRESSURE CONTROL (pdf)
* Manual PID Tuning
* Fast Sampling Rate - 100mS
* Control Response Time - 100mS
* PV Retransmission (4-20mA)
* AUTO/MANUAL Calibration


Melt Pressure

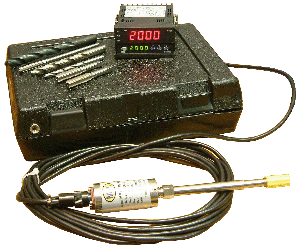

Melt Pressure Kits  (Click for more details)

MPI melt pressure kits allow extruders to upgrade to a highly accurate and configurable melt pressure alarm and/or control system at an economical price.


 Melt Pressure

Melt Pressure Accessories

CABLES - Transducer / Transmitter (pdf)

CONNECTORS - 6Pin, 8Pin (pdf)

CLEANING / CUTTING KIT (pdf)

Extruder Rupture Discs

Extruder Rupture Discs

RUPTURE DISCS (pdf)

MAX TEMP - 750F
ACCURACY - 5%
INCONEL DIAPHRAGM


    Diaphragm Material
    Application Performance
    Diamond Particulate on Inconel
    All Applications

    Ultimate Coating for High Abrasion

    Excellent Corrosion Resistance

    Triple Tip - Inconel 718

    3X Thicker Diaphragm

    Minimum 3000psi

    Excellent Abrasion Resistance

    Excellent Corrosion Resistance

    Inconel 718

    MPI Standard Diaphragm

    3X harder than stainless steel

    All applications

    Excellent Abrasion Resistance

    Excellent Corrosion Resistance

    HASTALLOY C-276

    PVC or TEFLON processing

    or any process generating :

    HCL, HF, HBn, HI

    Max Temp - 600oF

    Fair Abrasion Resistance

    Excellent Corrosion Resistance

    Titanium Nitride
    High Abrasion

    Excellent Abrasion Resistance

    Fair Corrosion Resistan

    Armoloy
    Low Abrasion Applications

    Fair Abrasion Resistance

    Fair Corrosion Resistan

    Electroless Nickel
    Low Abrasion Application

    Fair Abrasion Resistance

    Fair Corrosion Resista
